AimRT 0.8.0 Performance Testing

Preface

The communication layer of AimRT is implemented through plugins, with official support for communication plugins such as iceoryx, ROS2, Zenoh, Http, Grpc, and Mqtt, covering common edge and cloud communication scenarios. These plugins provide two common communication modes: publish-subscribe (Channel) and request-response (Rpc) for both local and cross-machine inter-process communication.

This document conducts performance tests on various core components officially provided by AimRT. Please note that test results are influenced by external factors such as testing platforms and networks, and are only intended to demonstrate relative performance.

Test Items

  • Single-machine performance testing

    • Log performance testing

    • Channel backend performance testing

    • Rpc backend performance testing

  • Multi-machine performance testing

    • Channel backend performance testing

    • Rpc backend performance testing

Test Environment

Architecture

Operating System

System Architecture

CPU

Host 1

GNU/Linux

x86_64

13th Gen Intel® Core™ i5-1350P - CPU(s):16

Host 2

GNU/Linux

x86_64

13th Gen Intel® Core™ i5-1350P - CPU(s):16

Test Results### Standalone Performance Testing

Logger Performance Testing

  • Test Items:

    • Test Environment: Host 1·x86

    • Test Objective: Log printing performance test (Average latency VS log size)

    • Test Results:

Log Data Size (bytes)

32

64

128

256

512

1024

2048

4096

8192

Avg Latency(ns)

235

735

393

568

819

839

4352

4407

4362

Channel Backend Performance Testing

  • Test Item 1:

    • Test Environment: Host 1·x86 (3 cores)

    • Test Objective: Cross-process Channel backend communication test on a single machine (Average latency VS packet size)

    • Test Configuration: channel_frequency=1 kHz, topic_number=1

    • Test Results:

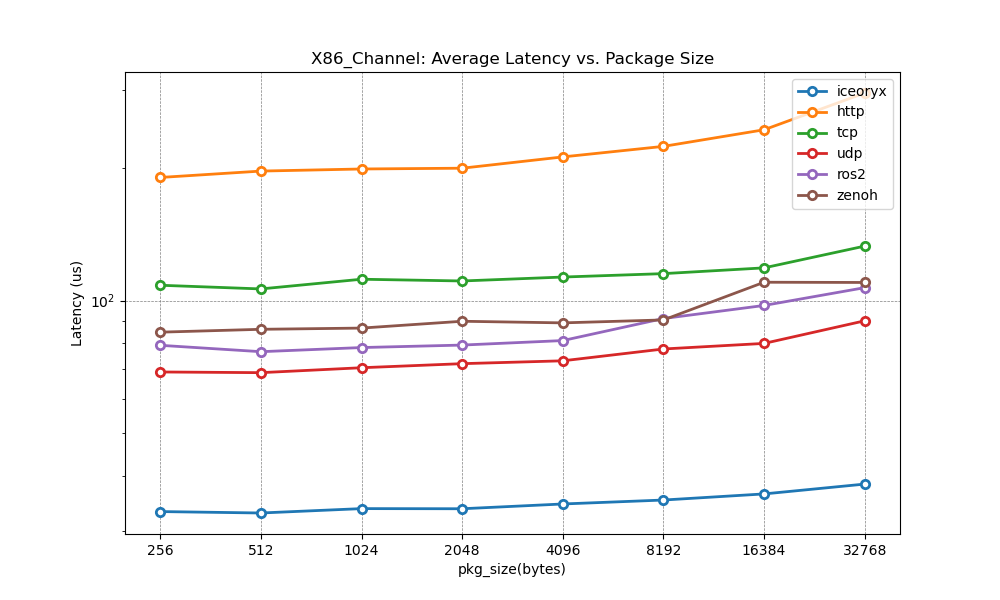

    X86_Channel_Average_Latency_vs_Package_Size

  • Test Item 2:

    • Test Environment: Host 1·x86 (3 cores)

    • Test Objective: Cross-process Channel backend communication test on a single machine (Average latency VS topic count)

    • Test Configuration: channel_frequency=1 kHz, pkg_size=1 k bytes

    • Test Results:

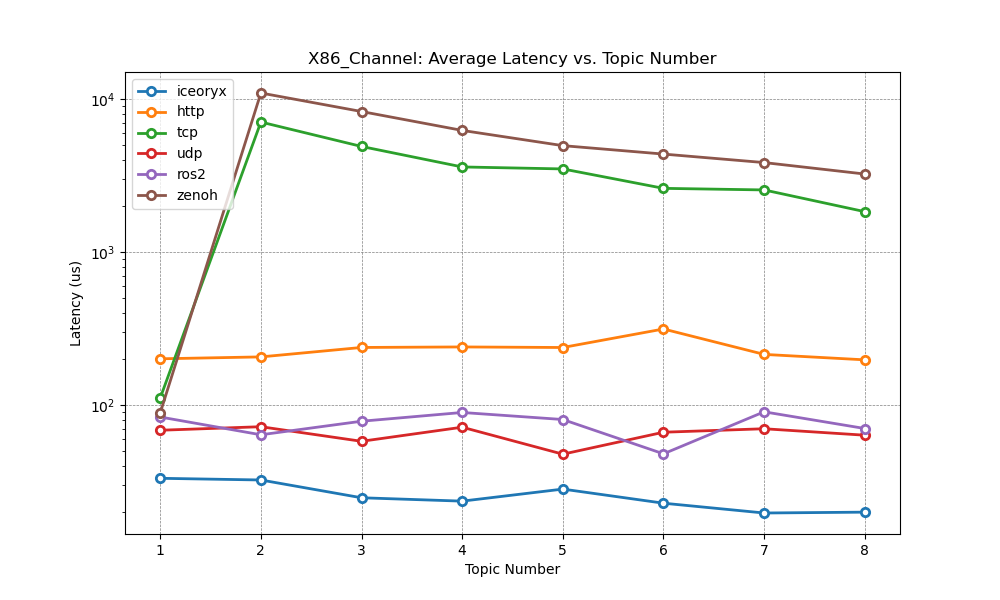

    X86_Channel_Average_Latency_vs_Package_Size

  • Summary:

ID

Backend Type

Pkg Size
(bytes)

Topic num

Avg Latency
(us)

Max Latency
(us)

Loss Rate
(%)

Avg CPU Usage
(%)

1

iceoryx

512

1

33.78

556.791

0

0.8/0.1

2

ros2

512

1

78.294

601.76

0

3.1/1.2

3

zenoh

512

1

86.67

3479.172

0

0.9/0.3

4

iceoryx

2048

1

33.755

368.843

0

0.9/0.3

5

ros2

2048

1

78.294

601.76

0

3.5/3.3

6

zenoh

2048

1

89.812

2265.741

0

1.3/1.4

7

iceoryx

8192

1

35.327

372.595

0

1.0/0.4

8

ros2

8192

1

91.106

898.042

0

3.6/4.2

9

zenoh

8192

1

90.438

1222.726

0

2.0 /1.5

10

iceoryx

1024

1

33.108

325.33

0

0.9 /0.8

11

ros2

1024

1

83.337

1223.164

0

3.4/3.2

12

zenoh

1024

1

88.695

1208.31

0

1.7/1.4

13

iceoryx

1024

4

23.417

458.296

0

1.5/1.5

14

ros2

1024

4

89.216

1965.28

0

4.4/ 11.7

15

zenoh

1024

4

6243.743

12750.598

0

2.5/1.6

16

iceoryx

1024

8

19.884

320.847

0

2.8/2.1

17

ros2

1024

8

70.075

3913.944

0

7.5/13.6

18

zenoh

1024

8

3237.104

6913.596

0

3.0 /1.8

Rpc Backend Performance Testing

  • Test Item 1:

    • Test Environment: Host 1·x86 (3 cores)

    • Test Objective: Cross-process Rpc backend communication test on a single machine (Average latency VS data packet size)

    • Test Configuration: paraller_number=1

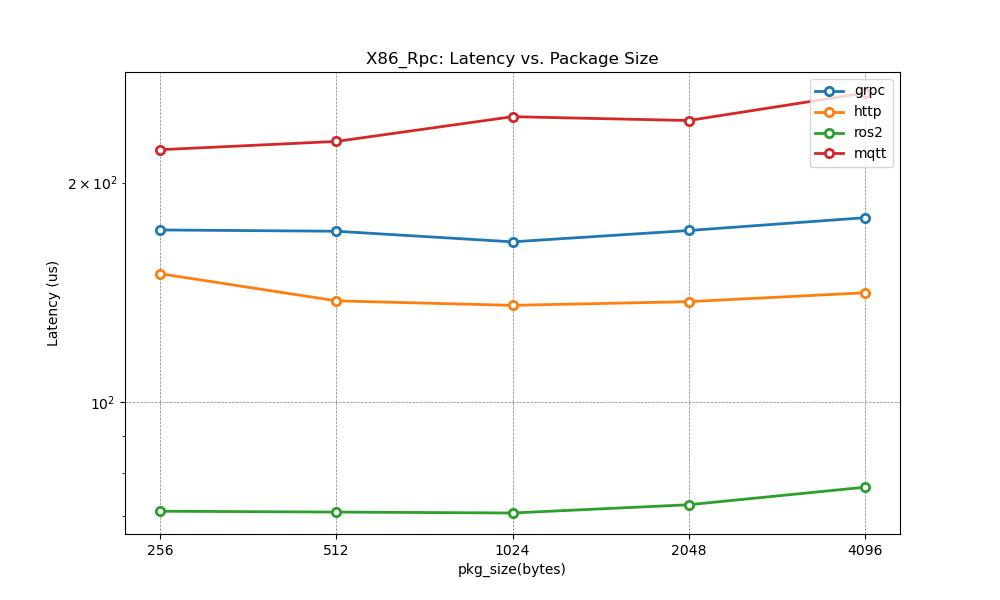

    • Test Results:```markdown X86_Channel_Average_Latency_vs_Package_Size

  • Test Item 2:

    • Test Environment: Host 1·x86 (3 cores)

    • Test Objective: Single-machine cross-process RPC backend communication test (QPS vs. Packet Size)

    • Test Configuration: paraller_number=1

    • Test Results:

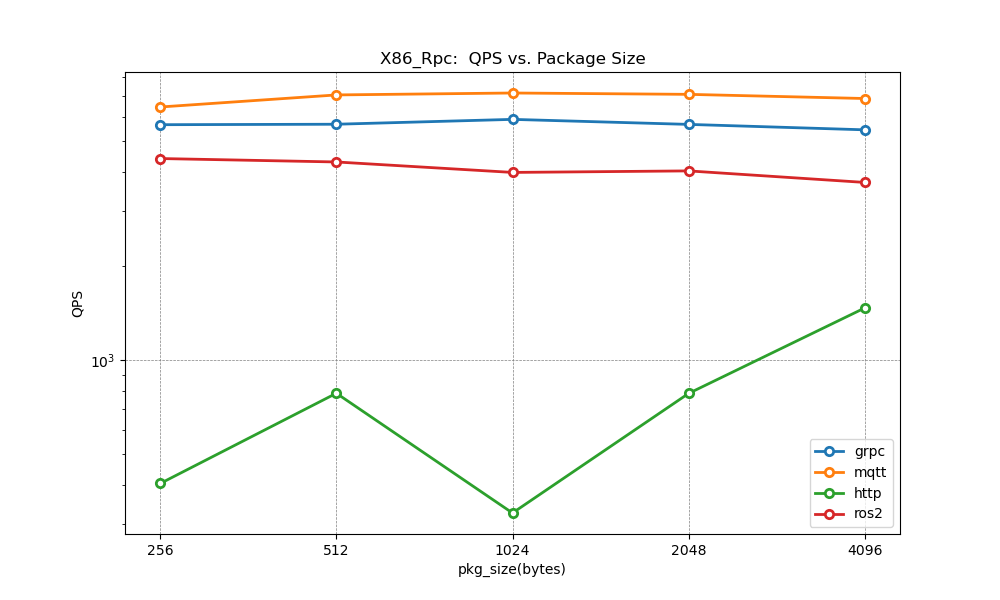

    X86_Channel_Average_Latency_vs_Package_Size

  • Test Item 3:

    • Test Environment: Host 1·x86 (3 cores)

    • Test Objective: Single-machine cross-process RPC backend communication test (Average Latency vs. Parallelism)

    • Test Configuration: Rpc_frequency=1 kHz, pkg_size=1 k bytes

    • Test Results:

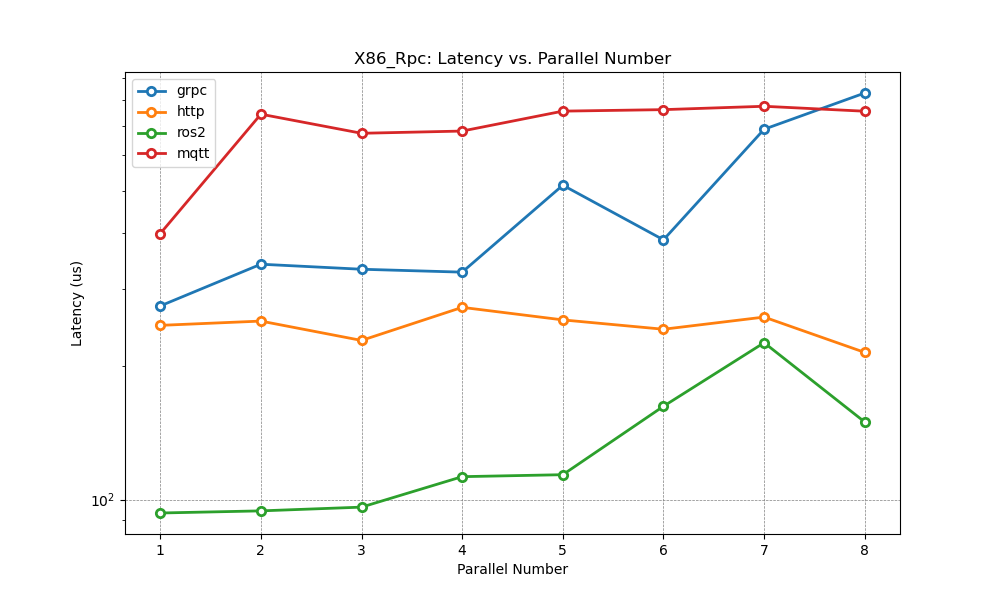

    X86_Channel_Average_Latency_vs_Package_Size

  • Summary:

Stress Test Mode

ID

Backend Type

Pkg Size
(bytes)

Topic num

Avg Latency
(us)

Max Latency
(us)

QPS

Error Rate
(%)

Avg CPU Usage
(%)

1

grpc

512

1

102.385

1015.132

5668.934

0

11.2/6.6

2

http

512

1

137.783

646.192

7032.348

0

33.9/6.9

3

ros2

512

1

710.772

787.366

784.190

0

23.1/4.1

4

mqtt

512

1

227.804

99936.432

4295.532

0

13.4/2.3

5

grpc

2048

1

172.007

846.916

5662.514

0

21.4/4.4

6

http

2048

1

137.435

620.138

7062.146

0

47.5/14.8

7

ros2

2048

1

72.425

687.575

783.330

0

28.4/7.7

8

mqtt

2048

1

243.326

100343.387

4022.526

0

18.6/6.1

Fixed Frequency Mode

ID

Backend Type

Pkg Size
(bytes)

Topic num

Avg Latency
(us)

Max Latency
(us)

Error Rate
(%)

Avg CPU Usage
(%)

1

grpc

1024

1

274.102

1135.26

0

28.7/7.3

2

http

1024

1

253.347

916.773

0

44.3/16.8

3

ros2

1024

1

93.259

1081.053

0

27.3/6.2

4

mqtt

1024

1

399.444

100581.09

0

17.5/11.1

5

grpc

1024

4

326.857

3131.102

0

19.8/12.6

6

http

1024

4

272.115

1713.79

0

46.3/26.3

7

ros2

1024

4

112.685

2050.94

0

40.6/19.6

8

mqtt

1024

4

681.431

99994.365

0

26.0/14.0

9

grpc

1024

8

830.776

4318.728

0

31.1/16.6

10

http

1024

8

215.188

3961.397

0

51.2/29.9


| 12  | mqtt         |         1024         |     8     |       755.568        |      98599.196       |         0          |       28.8/15.2       |### Multi-Machine Performance Testing

#### Host1 to Host2 Channel Backend Performance Testing

- Test Item 1:
  - Test Environment: Host1·x86 (3 cores), Host2·x86 (3 cores)
  - Test Objective: Cross-machine cross-process Channel backend communication test (Average Latency VS Packet Size)
  - Test Configuration: channel_frequency=1 kHz, topic_number=1
  - Test Result:

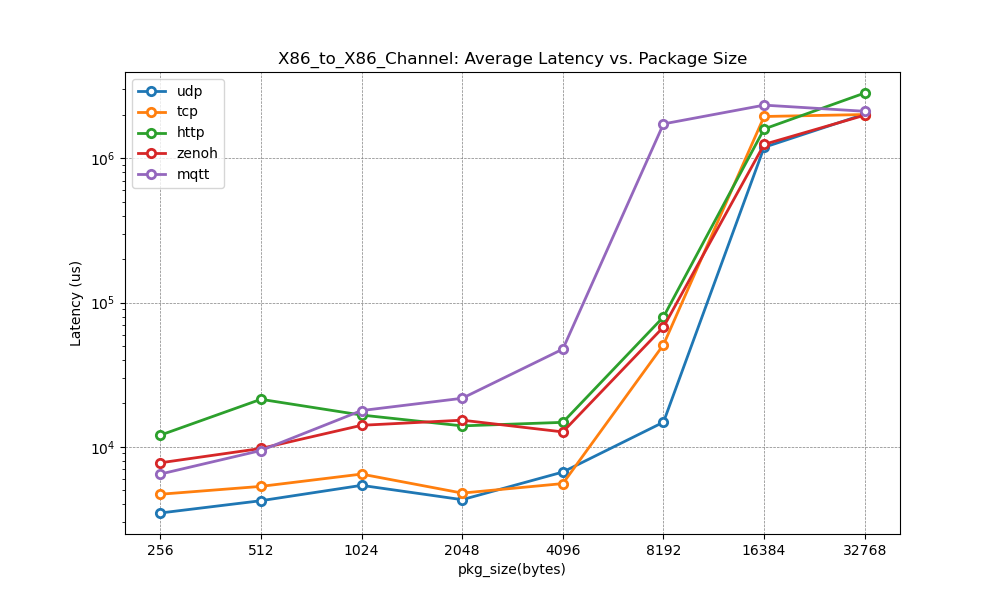

   ![X86_Channel_Average_Latency_vs_Package_Size](./pic/X86_to_X86_Channel_Average_Latency_vs_Package_Size.png)

- Test Item 2:
  - Test Environment: Host1·x86 (3 cores), Host2·x86 (3 cores)
  - Test Objective: Cross-machine cross-process Channel backend communication test (Average Latency VS Topic Number)
  - Test Configuration: channel_frequency=1 kHz, pkg_size=1 k bytes
  - Test Result:

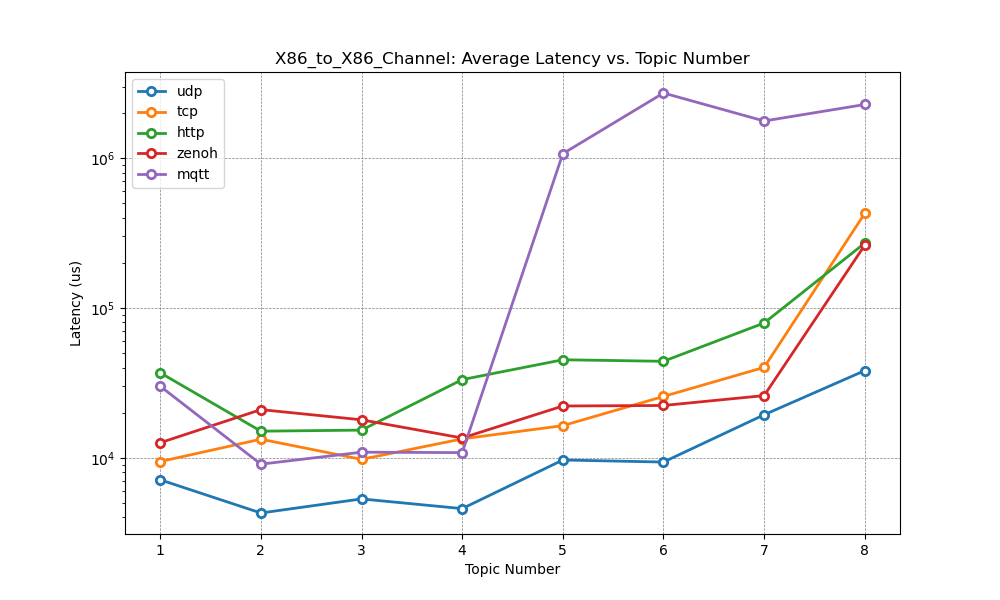

   ![X86_Channel_Average_Latency_vs_Package_Size](./pic/X86_to_X86_Channel_Average_Latency_vs_Topic_Number.png)

- Summary:

| ID  | Backend Type | Pkg Size <br>(bytes) | Topic num | Avg Latency<br> (us) | Max Latency <br>(us) | Loss Rate<br> (%) |
| --- | ------------ | :------------------: | :-------: | :------------------: | :------------------: | :---------------: |
| 1   | mqtt         |         512          |     1     |       9436.628       |     1922348.666      |         0         |
| 2   | zenoh        |         512          |     1     |       9749.743       |      225513.208      |         0         |
| 3   | mqtt         |         2048         |     1     |      21715.483       |      87612.922       |         0         |
| 4   | zenoh        |         2048         |     1     |      15313.238       |      130844.909      |         0         |
| 5   | mqtt         |         8192         |     1     |     1728639.372      |     4060503.312      |         0         |
| 6   | zenoh        |         8192         |     1     |      67700.703       |       84407.91       |         0         |
| 7   | mqtt         |         1024         |     1     |       30003.15       |      143020.411      |         0         |
| 8   | zenoh        |         1024         |     1     |      12590.826       |      78070.239       |         0         |
| 9   | mqtt         |         1024         |     4     |      10815.251       |      109914.215      |         0         |
| 10  | zenoh        |         1024         |     4     |      13537.918       |      98343.269       |         0         |
| 11  | mqtt         |         1024         |     8     |     2281671.772      |     4289304.104      |         0         |
| 12  | zenoh        |         1024         |     8     |      262563.641      |      449324.47       |         0         |

#### Host1 to Host2 Rpc Backend Performance Testing

- Test Item 1:
  - Test Environment: Host1·x86 (3 cores), Host2·x86 (3 cores)
  - Test Objective: x86_to_X86 cross-machine cross-process Rpc backend communication test (Average Latency VS Packet Size)
  - Test Configuration: paraller_number=1
  - Test Result:

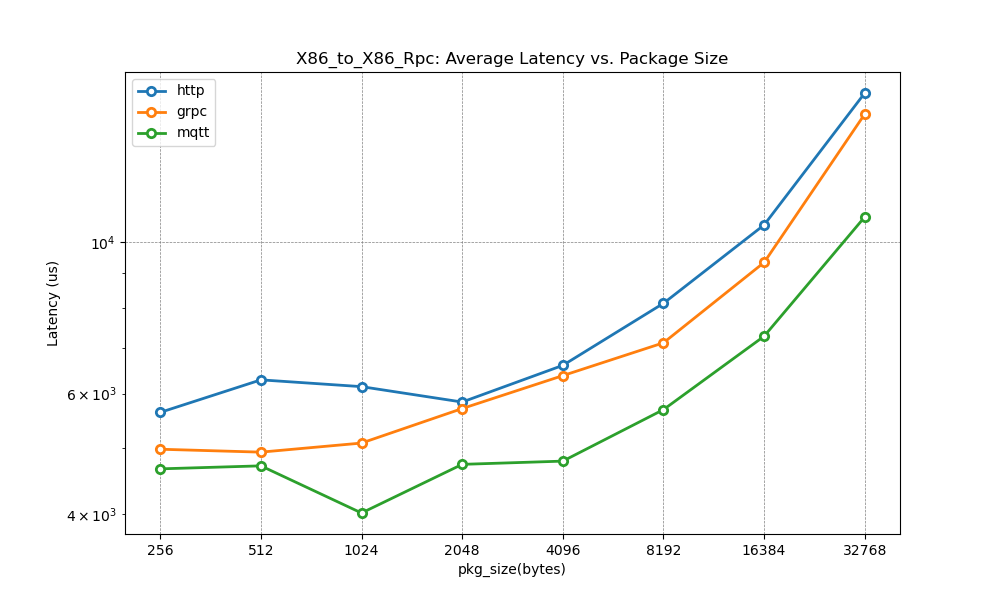

   ![X86_Channel_Average_Latency_vs_Package_Size](./pic/X86_to_X86_Rpc_Average_Latency_vs_Package_Size.png)

- Test Item 2:
  - Test Environment: Host1·x86 (3 cores), Host2·x86 (3 cores)
  - Test Objective: x86_to_X86 cross-machine cross-process Rpc backend communication test (QPS VS Packet Size)
  - Test Configuration: paraller_number=1
  - Test Result:

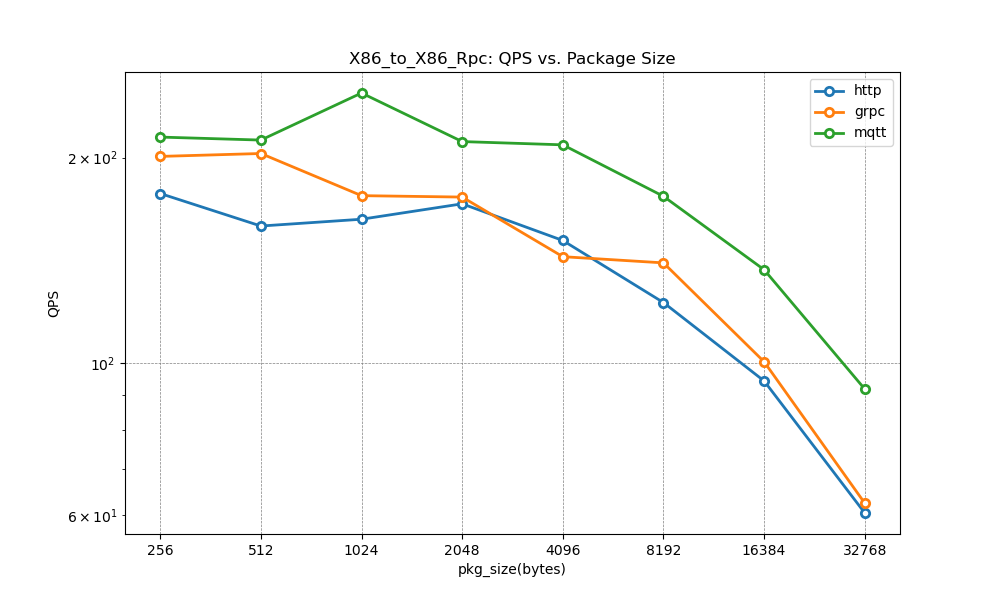

   ![X86_Channel_Average_Latency_vs_Package_Size](./pic/X86_to_X86_Rpc_QPS_vs_Package_Size.png)

- Test Item 3:
  - Test Environment: Host1·x86 (3 cores), Host2·x86 (3 cores)
  - Test Objective: x86_to_X86 cross-machine cross-process Rpc backend communication test (Average Latency VS Parallel Number)
  - Test Configuration: Rpc_frequency=1 kHz, pkg_size=1 k bytes
  - Test Result:

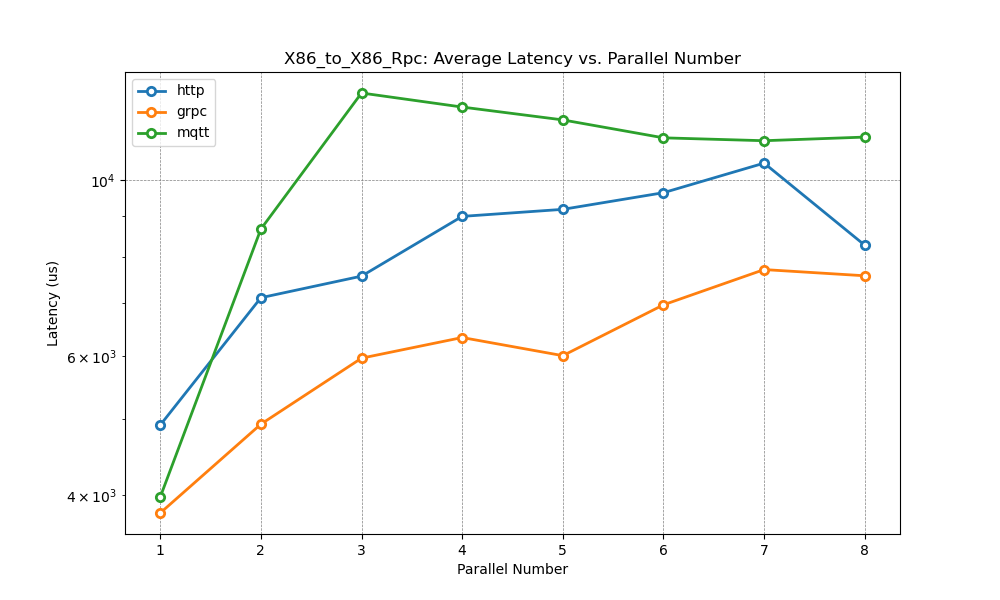

   ![X86_Channel_Average_Latency_vs_Package_Size](./pic/X86_to_X86_Rpc_Average_Latency_vs_Parallel_Number.png)


- Summary:

**Stress Testing Mode**

| ID  | Backend Type | Pkg Size <br>(bytes) | Topic num | Avg Latency<br> (us) | Max Latency <br>(us) |   QPS   | Error Rate<br> (%) |
| --- | ------------ | :------------------: | :-------: | :------------------: | :------------------: | :-----: | :----------------: |
| 1   | grpc         |         512          |     1     |       4924.824       |      322766.91       | 202.741 |         0          |
| 2   | http         |         512          |     1     |       6284.018       |      324016.359      | 158.825 |         0          |
| 3   | mqtt         |         512          |     1     |       4702.392       |      320198.678      | 212.116 |         0          |
| 4   | grpc         |         2048         |     1     |       5704.31        |      403065.412      | 175.082 |         0          || 5   | http         |         2048         |     1     |       5830.839       |      222680.914      | 171.156 |         0          |
| 6   | mqtt         |         2048         |     1     |       4726.14        |      321514.163      | 211.041 |         0          |
| 7   | grpc         |         8192         |     1     |       7120.05        |      315765.656      | 140.295 |         0          |
| 8   | http         |         8192         |     1     |       8134.13        |      335106.68       | 122.756 |         0          |
| 9   | mqtt         |         8192         |     1     |       5684.013       |      165831.057      | 175.530 |         0          |

**Fixed Frequency Mode**

| ID  | Backend Type | Pkg Size <br>(bytes) | Topic num | Avg Latency<br> (us) | Max Latency <br>(us) | Error Rate<br> (%) |
| --- | ------------ | :------------------: | :-------: | :------------------: | :------------------: | :----------------: |
| 1   | grpc         |         1024         |     1     |       3800.001       |      83298.271       |         0          |
| 2   | http         |         1024         |     1     |       4906.788       |      238306.281      |         0          |
| 3   | mqtt         |         1024         |     1     |       3979.662       |      117279.111      |         0          |
| 4   | grpc         |         1024         |     4     |       6329.525       |      315825.548      |         0          |
| 5   | http         |         1024         |     4     |       9002.289       |      614524.388      |         0          |
| 6   | mqtt         |         1024         |     4     |      12371.313       |      327013.301      |         0          |
| 7   | grpc         |         1024         |     8     |       7574.52        |      881297.081      |         0          |
| 8   | http         |         1024         |     8     |       8278.314       |      904195.888      |         0          |
| 9   | mqtt         |         1024         |     8     |      11336.935       |      324605.52       |         0          |
