AimRT 0.10.0-cpp Performance Test Report
Preface
The communication layer of AimRT is implemented via plugins. Officially supported communication plugins include iceoryx, ROS2, Zenoh, Http, Grpc, Mqtt, etc., covering common edge and cloud communication scenarios. These plugins provide the two common communication modes of publish-subscribe and request-response to enable inter-process communication both locally and across machines.
Test Environment
System Environment:
Operating System:
CPU: 13th Gen Intel® Core™ i5-1350P
Linux 6.1.59-rt16
Software Environment
AimRT Version: 0.10.0
Test Items
Tests were conducted using AimRT-cpp; the test items are as follows:
Single-machine performance test
Channel backend performance test
Impact of packet size on performance
Impact of topic count on performance
Impact of concurrency on performance
Rpc backend performance test
Impact of packet size on performance in bench mode
Impact of packet size on performance in fixed_freq mode
Impact of concurrency on performance in bench mode
Impact of concurrency on performance in fixed_freq mode
Multi-machine performance test
Channel backend performance test
Impact of packet size on performance
Impact of topic count on performance
Impact of concurrency on performance
Rpc backend performance test
Impact of packet size on performance in bench mode
Impact of packet size on performance in fixed_freq mode
Impact of concurrency on performance in bench mode
Impact of concurrency on performance in fixed_freq mode
Test Results
Single-machine Performance Test (X86)
Channel Backend Performance Test

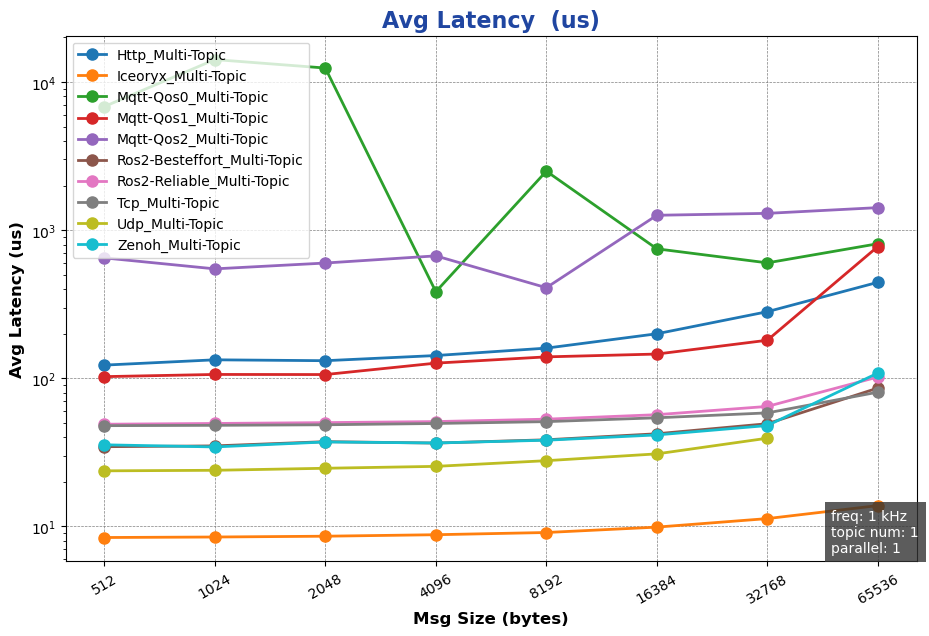

Impact of Packet Size on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
packet sizesTest Configuration:
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
topic_number: 1
parallel_number=1
Test Results:

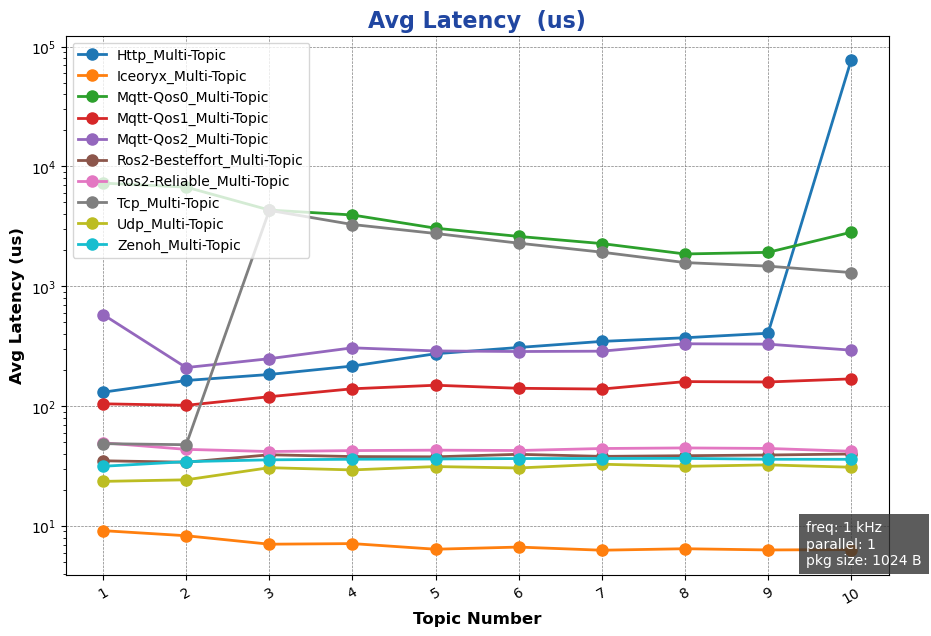

Impact of Topic Count on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
topic countsTest Configuration:
channel_frequency: 1 kHz
pkg_size: 1024 B
topic_number: 1 ~ 10
parallel_number=1
Test Results:

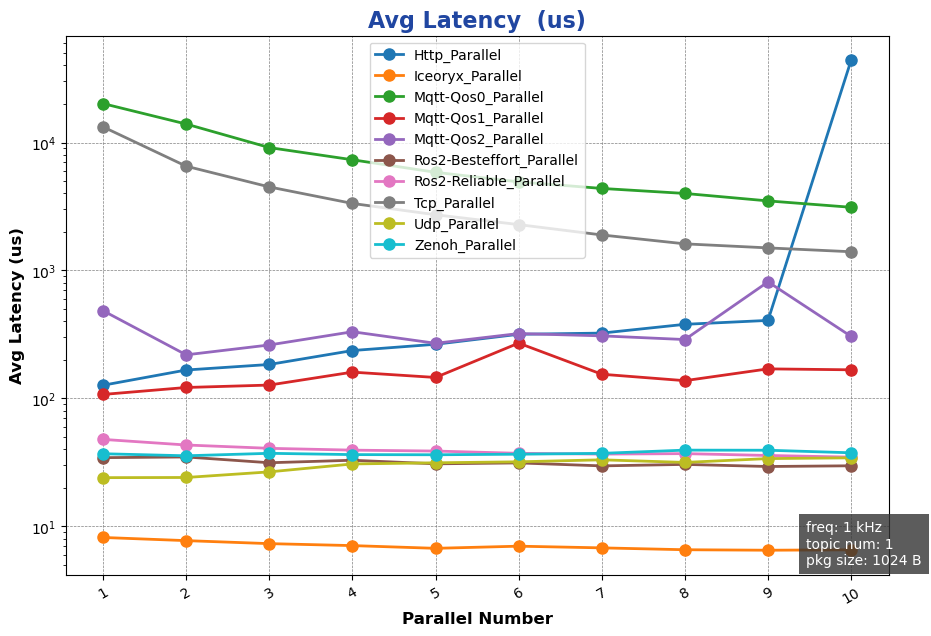

Impact of Concurrency on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
concurrency levelsTest Configuration:
channel_frequency: 1 kHz
pkg_size: 1024 B
topic_number: 1
parallel_number=1 ~ 10
Test Results:
Rpc Backend Performance Test

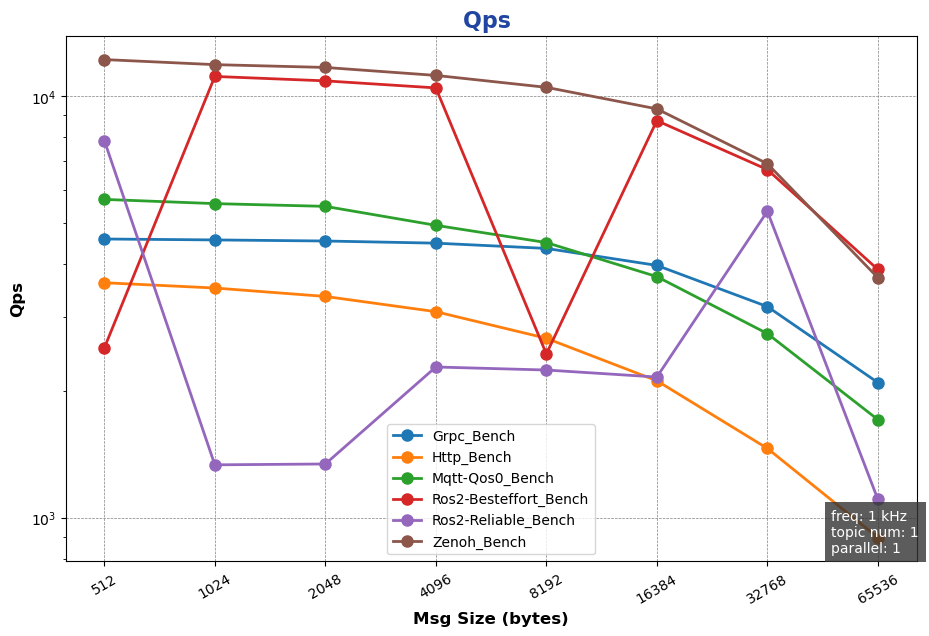

Impact of Packet Size on Performance in Bench Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
packet sizesin bench modeTest Configuration:
mode: bench
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
paraller_number: 1
Test Results:
Impact of Packet Size on Performance in Fixed-Freq Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
packet sizesin fixed-freq modeTest Configuration:
mode: fixed-freq
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
paraller_number: 1
Test Results:

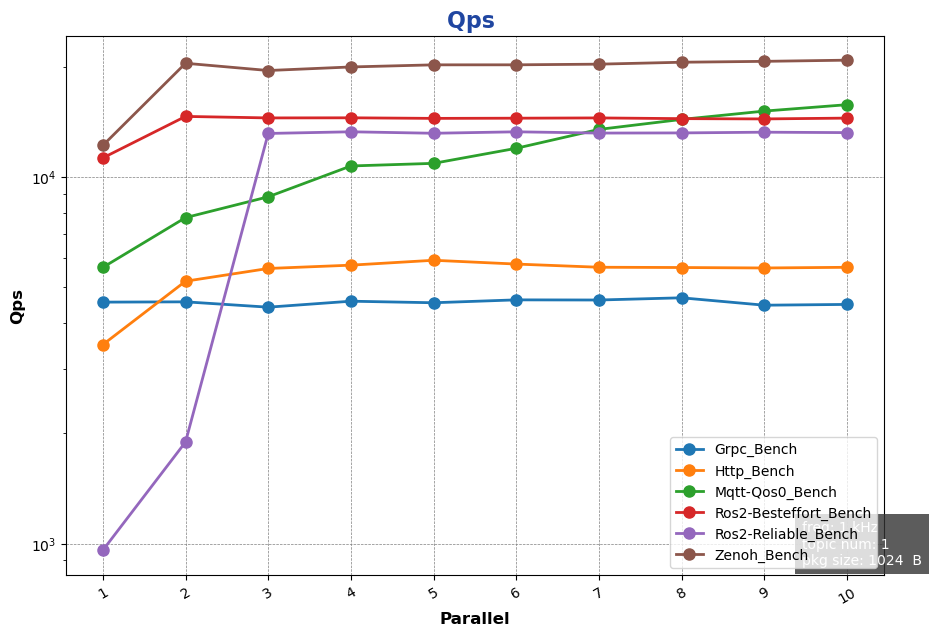

Impact of Concurrency on Performance in Bench Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
concurrency levelsin bench modeTest Configuration:
mode: bench
channel_frequency: 1 kHz
pkg_size: 1024 B
paraller_number: 1 ~ 10
Test Results:

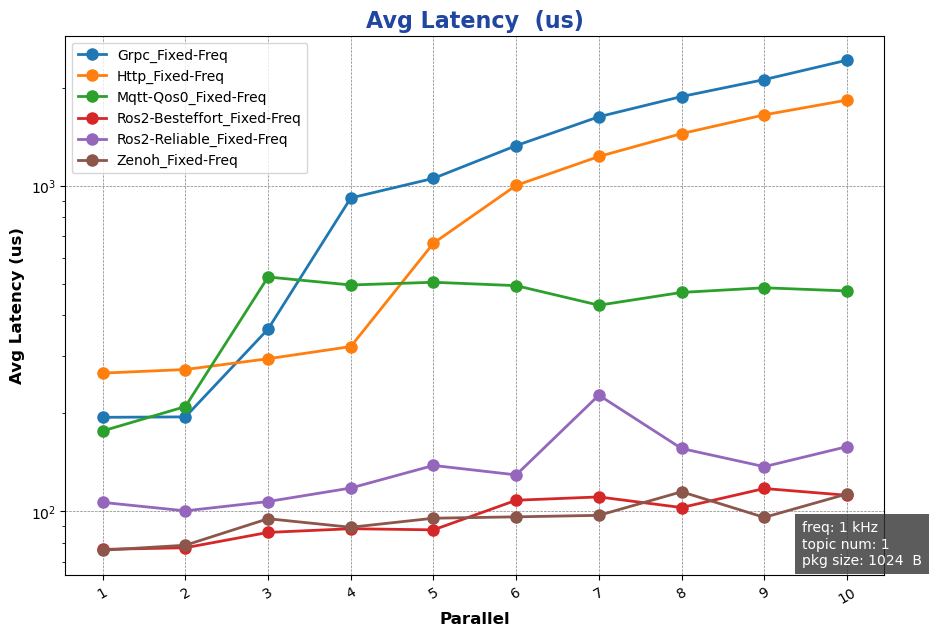

Impact of Concurrency on Performance in Fixed-Freq Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
concurrency levelsin fixed-freq modeTest Configuration:
mode: fixed-freq
channel_frequency: 1 kHz
pkg_size: 1024 B
paraller_number: 1 ~ 10
Test Results:
Cross-machine Performance Test
Channel Backend Performance Test

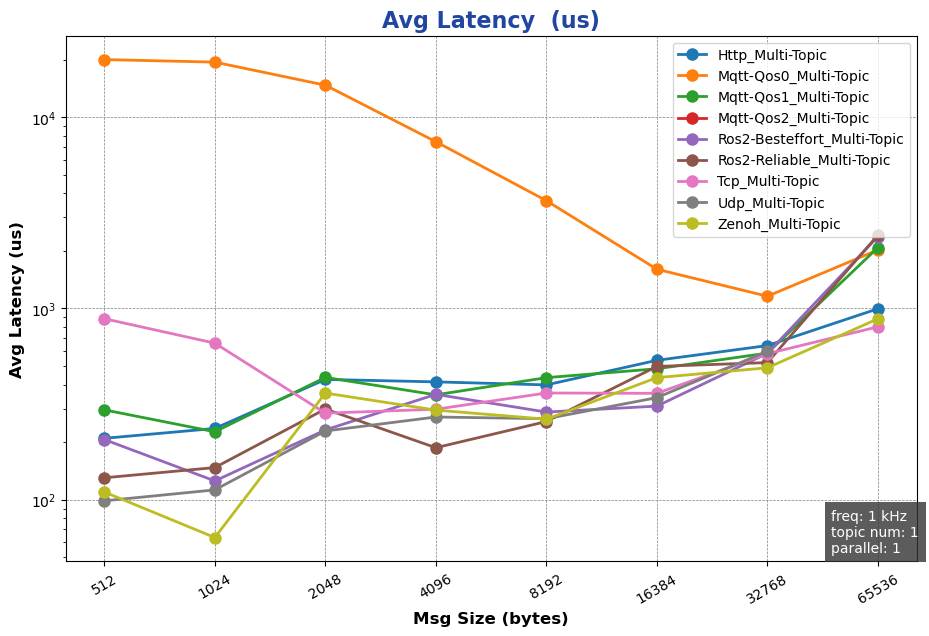

Impact of Packet Size on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
packet sizesTest Configuration:
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
topic_number: 1
parallel_number=1
Test Results:

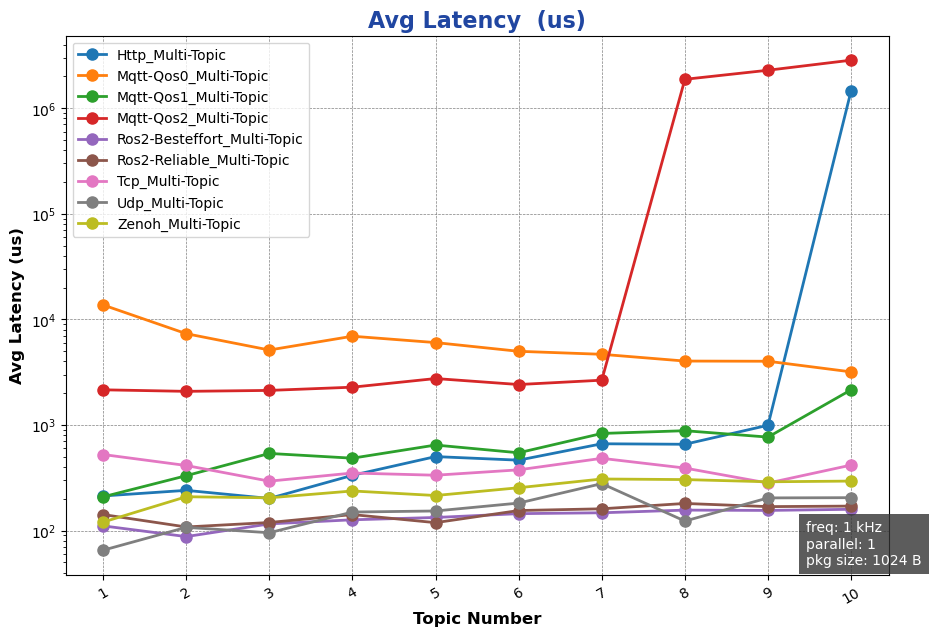

Impact of Topic Count on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
topic countsTest Configuration:
channel_frequency: 1 kHz
pkg_size: 1024 B
topic_number: 1 ~ 10
parallel_number=1
Test Results:

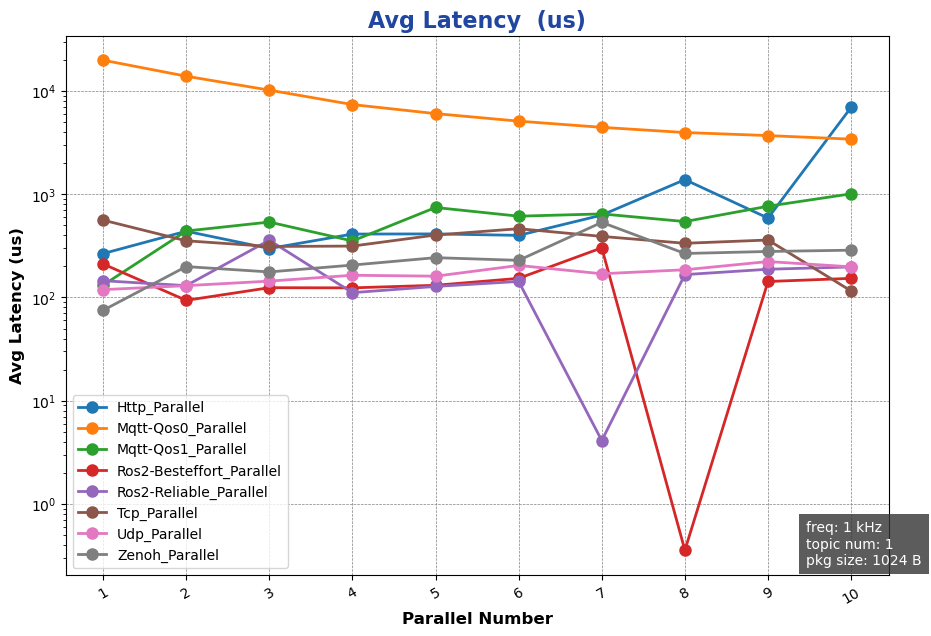

Impact of Concurrency on Performance:
Test Purpose: Performance test of single-machine cross-process Channel backend under different
concurrency levelsTest Configuration:
channel_frequency: 1 kHz
pkg_size: 1024 B
topic_number: 1
parallel_number=1 ~ 10
Test Results:
Rpc Backend Performance Test

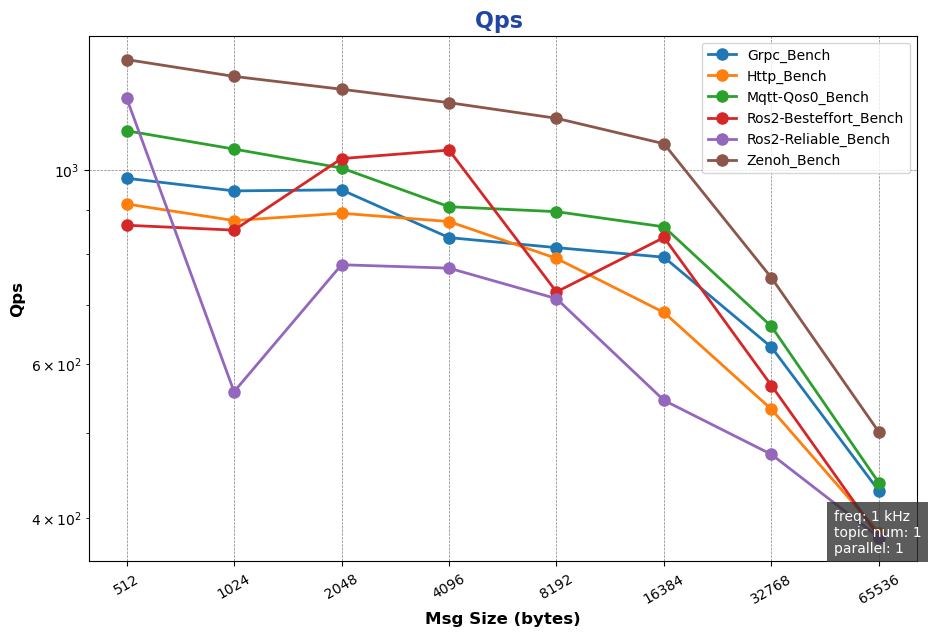

Impact of Packet Size on Performance in Bench Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
packet sizesin bench modeTest Configuration:
mode: bench
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
paraller_number: 1
Test Results:

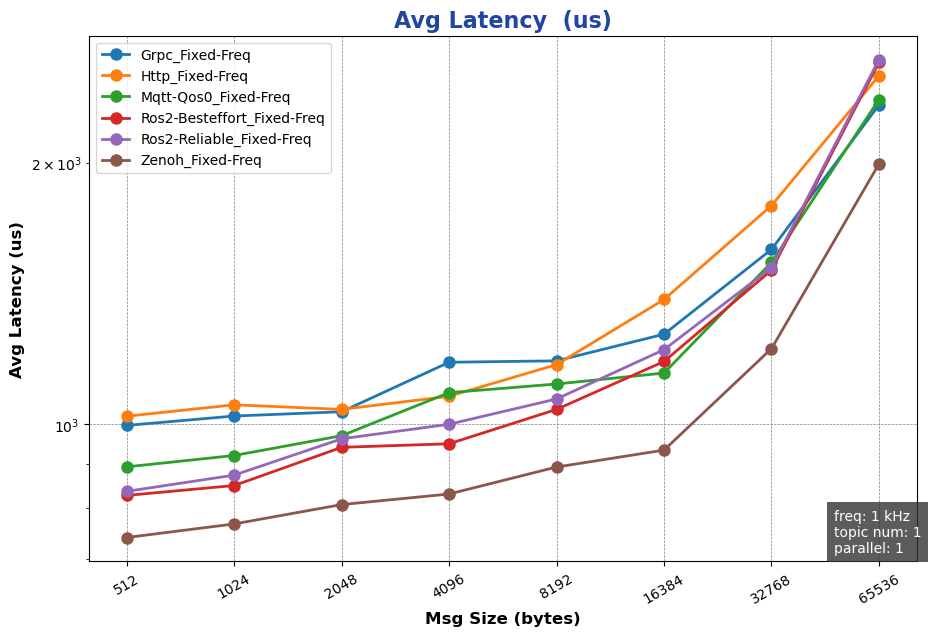

Impact of Packet Size on Performance in Fixed-Freq Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
packet sizesin fixed-freq modeTest Configuration:
mode: fixed-freq
channel_frequency: 1 kHz
pkg_size: 256 B ~ 64 KB (2^8 ~ 2^16, increasing by powers of 2)
paraller_number: 1
Test Results:

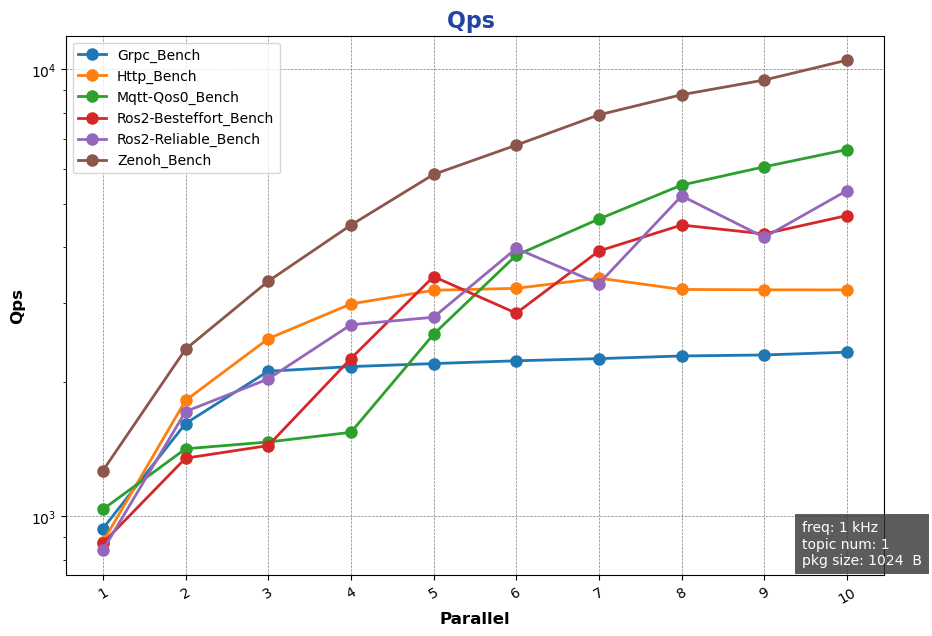

Impact of Concurrency on Performance in Bench Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
concurrency levelsin bench modeTest Configuration:
mode: bench
channel_frequency: 1 kHz
pkg_size: 1024 B
paraller_number: 1 ~ 10
Test Results:
Impact of Concurrency on Performance in Fixed-Freq Mode:
Test Purpose: Performance test of single-machine cross-process Rpc backend under different
concurrency levelsin fixed-freq modeTest Configuration:
mode: fixed-freq
channel_frequency: 1 kHz
pkg_size: 1024 B
paraller_number: 1 ~ 10
Test Results:
